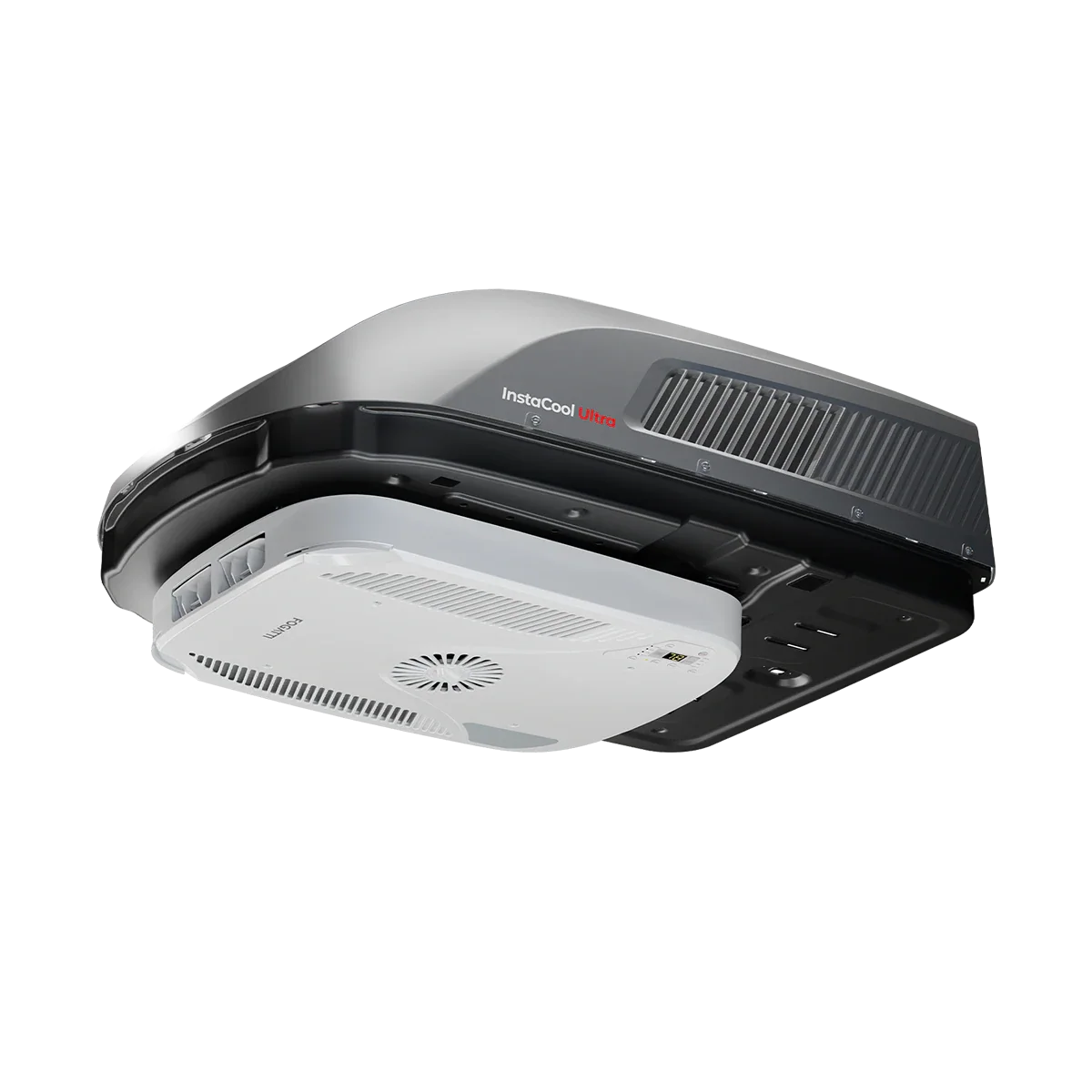

Fogatti InstaCool Ultra Rooftop RV Air Conditioner with Heat Pump | 16,000 BTU Cooling / 12,500 BTU Heating | Non-Ducted
Fogatti InstaCool Ultra Rooftop RV Air Conditioner with Heat Pump | 16,000 BTU Cooling / 12,500 BTU Heating | Non-Ducted
Fogatti InstaCool Ultra Rooftop RV Air Conditioner with Heat Pump | 16,000 BTU Cooling / 12,500 BTU Heating | Non-Ducted
Product Overview
The Fogatti InstaCool Ultra is the flagship all-season RV rooftop AC — delivering 16,000 BTU cooling and 12,500 BTU heating via a true heat pump, covering RVs up to 36 feet and 600 sq. ft. With a dual-motor triple-fan system at 418 CFM, whisper-quiet 43 dB operation, EER 11.8 efficiency, and WiFi + touchscreen + remote control, it’s the most advanced RV rooftop AC in the Fogatti lineup.
Key Specifications
- Cooling Capacity: 16,000 BTU
- Heating Capacity: 12,500 BTU (heat pump)
- Airflow: 418 CFM (dual-motor, triple-fan)
- EER Rating: 11.8 (energy-efficient)
- Noise Level: As low as 43 dB
- Coverage: Up to 600 sq. ft. / RVs up to 36 ft
- Refrigerant: R-32 (eco-friendly, lower GWP)
- Profile Height: 12.2 inches (low-profile)
- Vent Fit: Standard 14.25 x 14.25-inch rooftop opening
- Roof Thickness: 1.2–5.0 inches (5.3" bolt included)
- Installation Type: Non-ducted (ducted systems not compatible)
Key Features
- All-Season Heat Pump: 16,000 BTU cooling + 12,500 BTU heating in one unit — no separate heater needed.
- Fast Performance: Dual-motor triple-fan system at 418 CFM — 30% faster cooling and heating. Feel the change in just 4 minutes.
- Whisper-Quiet at 43 dB: Restful sleep and undisturbed relaxation, day or night.
- 3 Control Methods: Remote control, touchscreen ADB panel, and WiFi app — full comfort control from anywhere in the RV.
- Smart Oscillation: Upgrade to Dual-Sync Motor ADB panel for automatic 0–85° swing for even airflow throughout the cabin.
- Easy Installation: Fits standard 14.25 x 14.25-inch openings, no modification needed. Includes sealing materials and 5.3" bolt.
- Road-Ready Design: 12.2" slim profile clears low bridges. Dual-layer base absorbs road vibrations. Foam insulation protects internal components.
- Eco-Friendly R-32 Refrigerant: Lower GWP with strong, efficient performance.
InstaCool AC Lineup Comparison
- InstaCool 15,000 BTU (#84): Standard RVs, dual compressors, 1,500W heat strip, 59 dB — $1,199.99
- InstaCool Pro 18,000 BTU (#85): Medium-large RVs, PTC heating, 115°F rated — $1,399.99
- InstaCool Ultra 16,000 BTU (#87): Up to 36 ft RVs, true heat pump, 43 dB, WiFi, EER 11.8 — $1,299.99
Estimated Product Price
Please refer to the Fogatti product page for the latest pricing and availability.
Estimated Shipping
Shipping costs and delivery times depend on destination and shipping method selected. Ships to USA & Canada.
Product Highlights
- 16,000 BTU cooling + 12,500 BTU true heat pump heating
- 418 CFM dual-motor triple-fan — 30% faster, 4-min comfort
- 43 dB whisper-quiet — quietest in the lineup
- EER 11.8 — most energy-efficient InstaCool
- WiFi + touchscreen ADB + remote control
- 12.2" low-profile — clears low bridges
- Eco-friendly R-32 refrigerant
- Save $450 vs. original price
